MB prog MAXI is an evolution with a special add-on of BGA/204/207 software, set of software and hardware that covers entire set of Mercedes keys programming. When we were designing MAXI kit set, we had in mind that when it comes to key programming, this set should cover not only new IR keys, but also transponder keys and first generation of IR keys (flip keys).
MAXI kit contains not only key programming tools but also tools that allow erasing of the modules in Mercedes-Benz cars (including ECU’s and gearbox) and also testing on the bench. MAXI kit contains also emulators and one key, ready to be used.

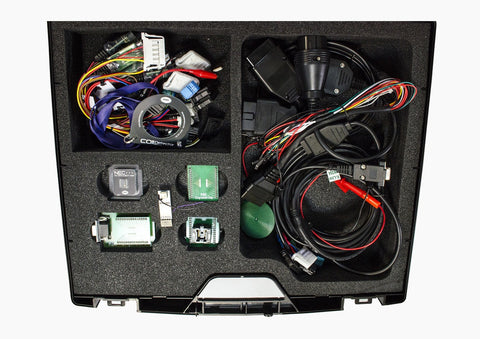

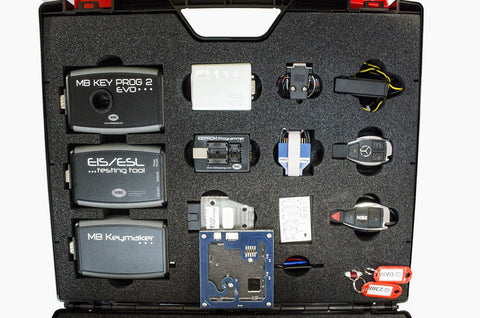

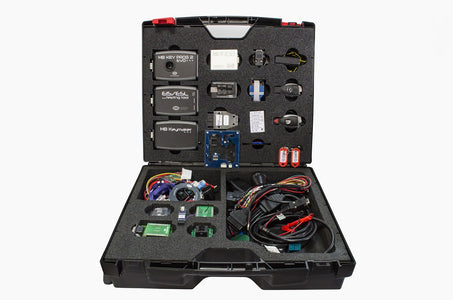

This set contains two plastic cases.
What is the most important add-on is a function that allows in an easy way, to read password and program keys in vehicles with BGA keys:
All key lost, list below covers only BGA equipped vehicles, much more are covered
Add key (at least one existing key), list below covers only BGA equipped vehicles, much more are covered
W164 2009 +
All calculations for BGA keys are done on-line and internet connection is required; software works in pay-per-use way. It comes with 20 credits (20 password calculated).
MB Keyprog 2 EVO main adapter
IR Key Tools 204/207 SE
MB Magic Eraser + connection cable
204/207 click 'n go
PCB adapter: DB9 main + 3 NEC PCB
USB security dongle
DATA flash memory card
NEC IC Socket
EIS/ESL Testing tool
MB Testing key
MBprog HC08/12 programmer
MB main OBD cable
MB 38 pin cable
ESL Emulator slim type
W204 OBDII/ESL K-line cable
BE key 433 or 315 Mhz
ESL NEC chip emulator
MB Coil detector
28 PIN clip
MB kr55 Keymaker
NEC Prog v. 12
IR Tools basic software
IR Tools EZS password reader
ESL/ELV Evo Prog
MB Keyprog-2 v. 1.5
MB Keyprog Lite v. 2.11
MB Key Restorer
ECU CR1/2 Reader
IR Tools Advanced - Key Emulation
Online key calculation access
MB Magic Eraser software
MB PCF Keymaker (for ML device)
MB Truck Keymaker (for ML device)
Dodge Sprinter (for ML device)
ATTENTION: After purchase you will receive BGA account registration form from LA Car Tech. Please fill it out and send it back ASAP, so we can setup your account.
Attention: if you have existing MBE Engineering set, you can contact LA Car Tech to update your set to work with BGA/204/207 vehicles. Contact us directly at firstname.lastname@example.org or phone: 877-289-5124.
Click'n Go - typical set of specially designed adapters, allowing to read Mercedes-Benz EIS'es (electronic ignition switches) with Motorola MC69HC908, MC912 and MC9S12 processors without any need of soldering or tampering with them.
Do not use any chemicals to clean Click’n Go adapters. Use only slightly damp cloth.
This set contains Click'n Go adapters for:
Set doesn't include Mercedes Click'n Go:
